Fe26 PLUS

Fe26 PLUS Posts & Brackets

Posts

Post Base Cover
Included in Post Box with 39.5″ (1003mm), 45.5″ (1156mm) and 55″ (1397mm) Posts with base plate.

All post base plates have a hole in the center enabling ease of wiring for lighting installations.

39.5″ (1003mm) Surface Mount | 49″ (1245mm) Fascia Mount
Goes with 34″ (864mm) Level Railing panel.

45.5″ (1156mm) Surface Mount | 55″ (1397mm) Fascia Mount

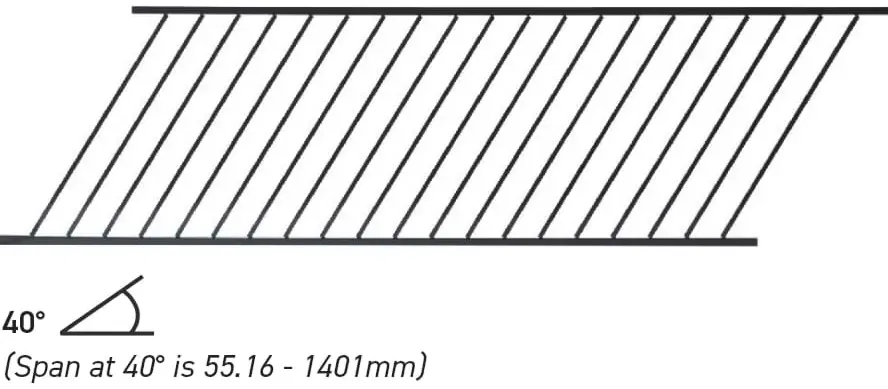

Goes with 40″ (1016mm) Level Railing panel or 34″ (864mm) Level Railing panel when using Accent Top Panel. Also used with 34″ (864mm) Stair Railing panel.

55″ (1397mm) Surface Mount

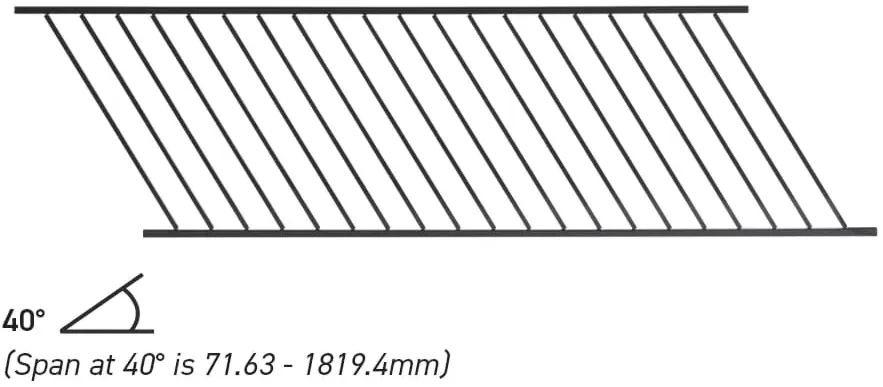

Goes with 40″ (1016mm) Stair Railing panel or 40″ (1016mm) Level Railing panel when using Accent Top Panel.

49″ (1245mm) ADJ Stair Stringer Post can be used with any of FBP’s level or adjustable steel infill panels when used in conjunction with c-channel. No welding required.

I-Support

Used for extra support under a railing panel. Available in 2″ and 3.75″. Follow local building codes for support requirements.

Traditional, Attachment for Fascia Mount.

Brackets

For stair panel installation, use Universal Brackets with angle adjusters, adjustable Collar Brackets or Simplified Stair Brackets.

Universal Bracket — Hidden Fasteners (Patented)

UB (Level)
05 (1.25″/32mm) | 06 (1.50″/38mm) when using Accent Top Panel

UB-ANG
05 (1.25″/32mm)
Add to Universal Bracket for Stair or Angle/Miter Application.

Simplified Stair Bracket

For stair applications only. One package of 4 brackets is needed to install one stair panel.

SSB — 05 (1.25″/32mm)
Use for stair panels with 1.25″ (32mm) rails.

Collar Bracket — Traditional Fasteners

• CB (Level) — 05 (1.25″/32mm)
• CBS-ADJ (Angle/Miter) — 05 (1.25″/32mm)
• CB-ADJ (Stair) — 05 (1.25″/32mm)

Fascia Mount Bracket

• 3″ Straight Bracket
• 3″ Inside Corner Bracket
• 3″ Outside Corner Bracket
