Fe26 H-Series Cable Infill

Fe26 Posts & Brackets

Posts

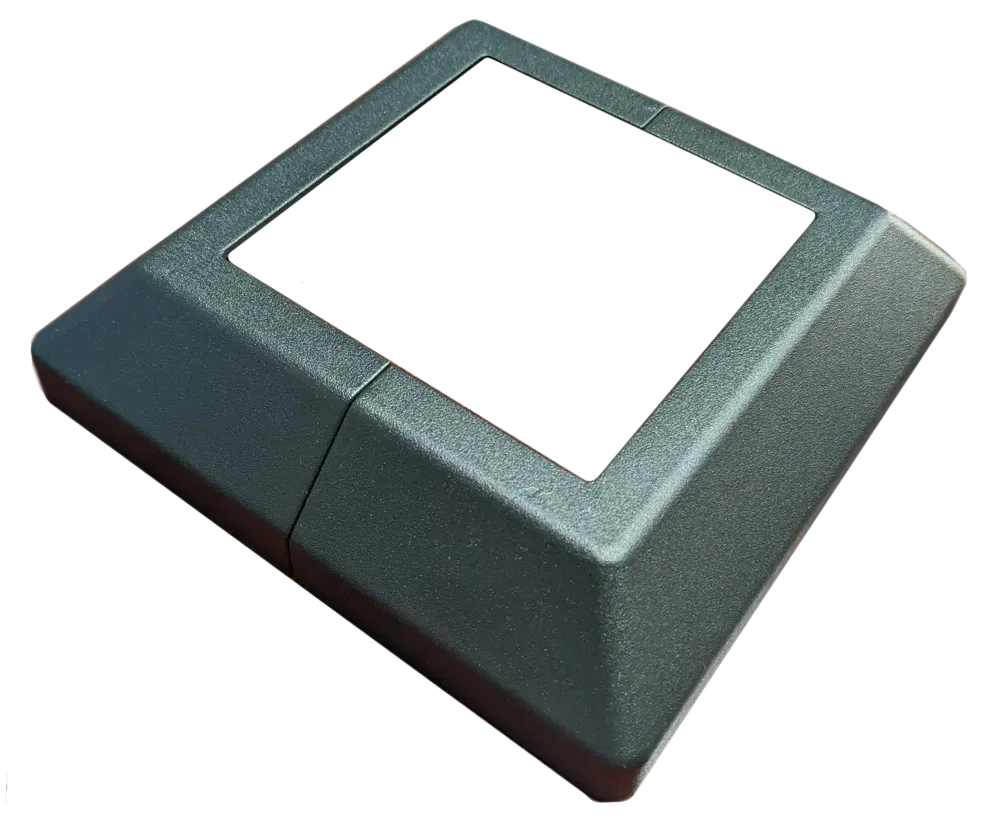

Post Base Cover
Included in Post Box with 39.5″ (1003mm), 45.5″ (1156mm) and 55″ (1397mm) Post with base plate.

39.5″ (1003mm) Surface Mount | 39.5″ (1003mm) Post with Pre-Attached Brackets | 49″ (1245mm) Fascia Mount
Use 39.5″ (1003mm) Post with 34″ (864mm) Level Railing Infill Panel or with 28″ (711mm) Level Railing Infill Panel when using Accent Top Panel (ATP). Use 49″ (1245mm) Post for 34″ (1003mm) Stair Railing Infill Panel.

45.5″ (1156mm) Surface Mount | 45.5″ (1156mm) Post with Pre-Attached Brackets | 55″ (1397mm) Fascia Mount
Use 45.5″ (1156mm) Post with 40″ (1016mm) Level Railing Infill Panel or 34″ (864mm) Level Railing Panel when using Accent Top Panel (ATP). 34″ (864mm) Stair Railing Infill Panel can be used with 45.5″ (1159mm) Surface Mount Post. Use 40″ (1016mm) Level Railing Infill Panel with 45.5″ (1156mm) Post with Pre-Attached Bracket (2″/51mm bottom rail) for 42″ (1067mm) install.

55″ (1397mm) Surface Mount Post
Use with 40″ (1016mm) Stair Railing Infill Panel.

49″ (1245mm) Adjustable Stair Stringer Post can be used with any of FBP’s Level or Adjustable Steel Infill Panels when used in conjunction with c-channel. No welding required. For stair panel installation, use 55″ posts, Universal Brackets with angle adjusters, adjustable Collar Brackets or Simplified Stair Brackets.

Universal Bracket — Hidden Fasteners (Patented)

UB (Level)
04 (1″/25mm) | 05 (1.25″/32mm)

UB-ANG
04 (1″/25mm) | 05 (1.25″/32mm)
Add to Universal Bracket for Stair or Angle/Miter Application. Use UB05 when installing ATP with Fe26.

Collar Bracket — Traditional Fasteners

• CB (Level) — 04 (1″/25mm) | 05 (1.25″/32mm)
• CBS-ADJ (Angle/Miter) — 04 (1″/25mm)
• CB-ADJ (Stair) — 04 (1″/25mm)

Patio Bracket

For on-grade use only — 30″ (762mm) or less above ground.

• Patio Bracket Standard (Level)
• Patio Bracket ADJ — Stair or Angle/Miter applications

Fascia Mount Bracket

• Straight Bracket — 2″ (51mm) | 3″ (76mm)
• Inside Corner Bracket — 2″ (51mm) | 3″ (76mm)
• Outside Corner Bracket — 2″ (51mm) | 3″ (76mm)

Simplified Stair Bracket

For stair applications only. One package of 4 brackets is needed to install one stair panel.

SSB — 04 (1″/25mm) | 05 (1.25″/32mm)
Required for Horizontal Stair Railing panel applications (Axis & H-Series).

I-Support

Traditional, Axis & Pure View, Attachment for Fascia Mount, Cable Level, Cable Stair.

Follow local building codes for support requirements.
